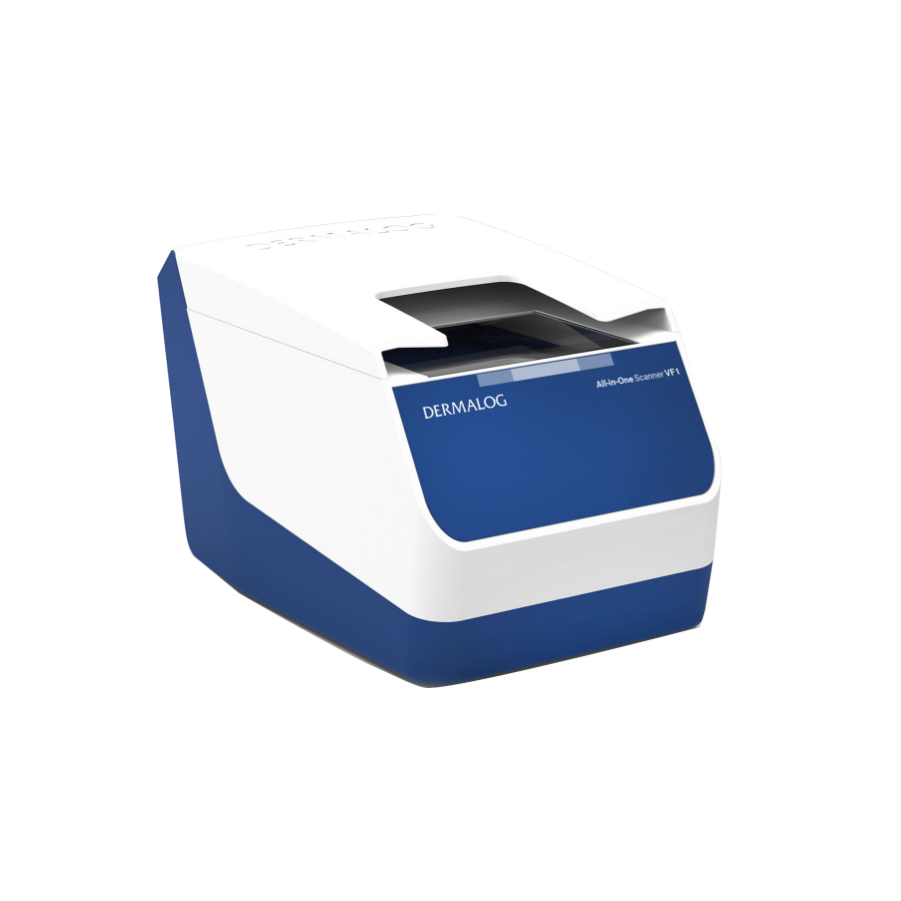

Dermalog All in One Scanner-VF1

for fingerprints, ePassports, ID cards, signatures, flight tickets, barcodes, photos etc.

Easy of use

Self-explanatory design leads users to put a finger on the scanner in a correct way without needing assistance.

Excellent Quality

The device ensures excellent results for both wet and dry fingerprints.

High speed

It's advanced optical system takes plain fingerprint images in just a second.

Detail Products

The DERMALOG VF1 is the world’s first multipurpose scanner for fingerprints and ePassports capturing both using the same device. DERMALOG’s latest sensor technology results in one single device for both. For the first time all capabilities of an optical ten print scanner (4-4-2 scanner) and a full colour passport scanner (with RFID) are fully integrated. To make this device even more versatile the VF1 is able to capture barcodes, flight tickets and signatures on the same scanning area.

Products Feature

Products Use For

Border Control

The most advanced solution with latest technologies for border control fully integrated.

Biometric Banking

Complete biometric solutions for banks - ensuring maximum security and best possible KYC.

Biometric Documents

Integrated biometrics provide maximum security and authenticity for a wide range of documents.

Technical Data

Fingerprint scanning window size 25 mm x 18 mm
Optical scanning area 24.4 mm x 16.3 mm
Image resolution 480 x 320 pixels, 500 dpi
Bit Depth 8 bit, 256 gray levels
Raw fingerprint image file size WSQ compressed Approx. 160 kByte Approx. 18 kByte
Interface USB 2.0 high-speed with 1.8 meters standard USB cable
Dimensions (H x W x D) 60 mm x 83 mm x 49 mm
Weight 166 g
Operating temperature -10 to +55 °C (14 to 131 °F) at a humidity of 20 - 75 % non-condensing
Storage temperature -10 to +60 °C (14 to 140 °F) at a humidity of 10 – 90 % non-condensing
Light source Infrared light-emitting diodes (LED)
Supply DC 4.5 – 5.5V / 200mA (USB powered)
Certifications CE, BSI-TR-03104, FBI-PIV, FCC Part 15 Subpart B Class A
